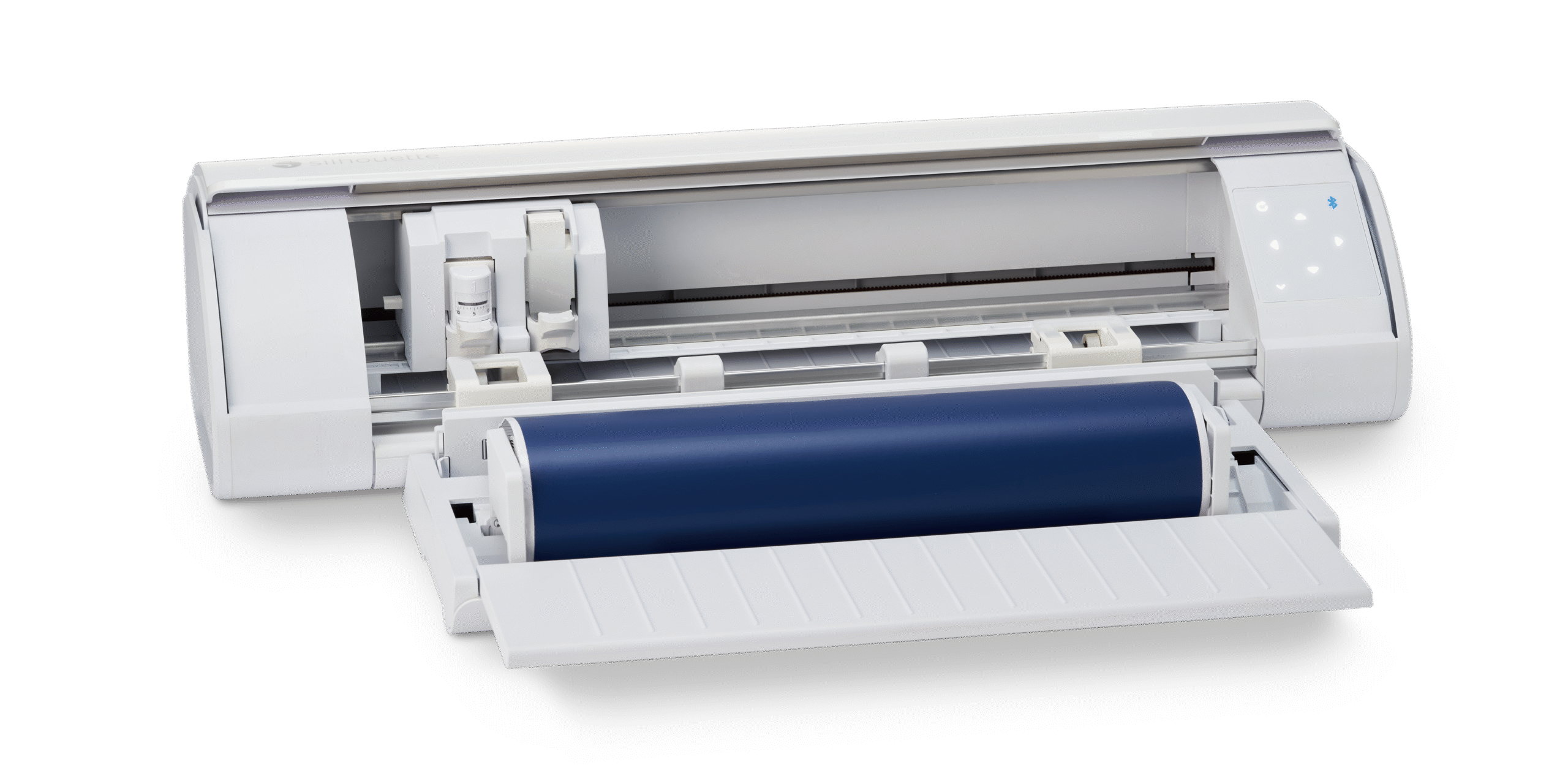

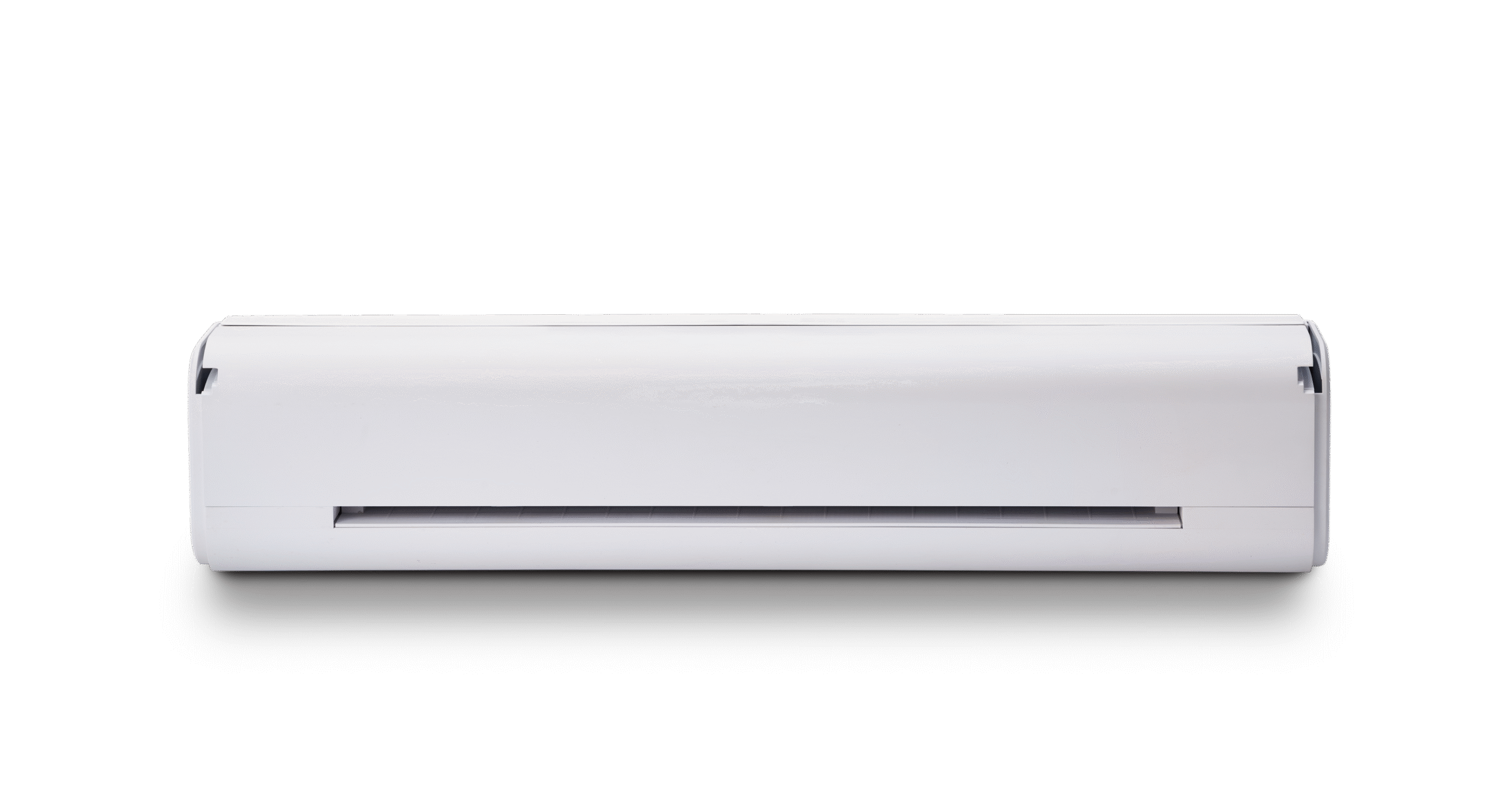

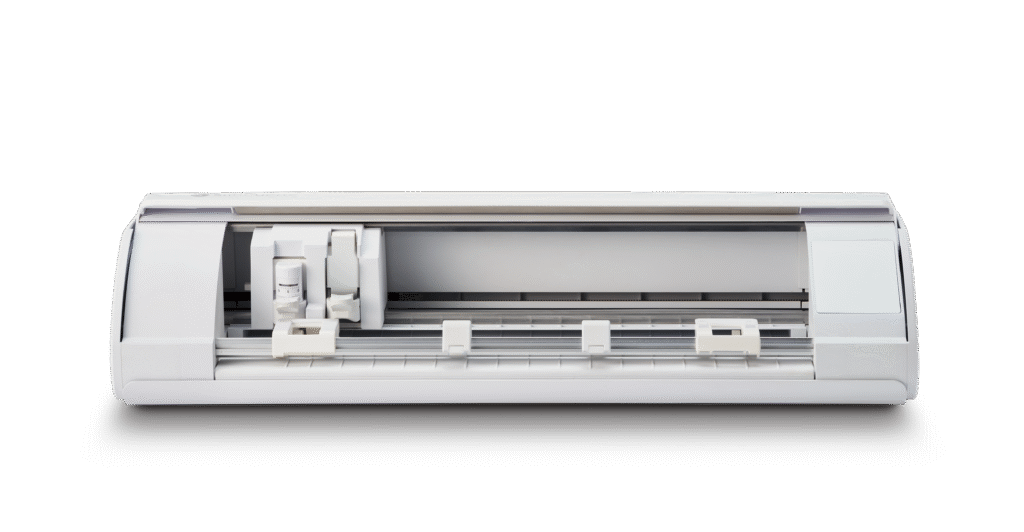

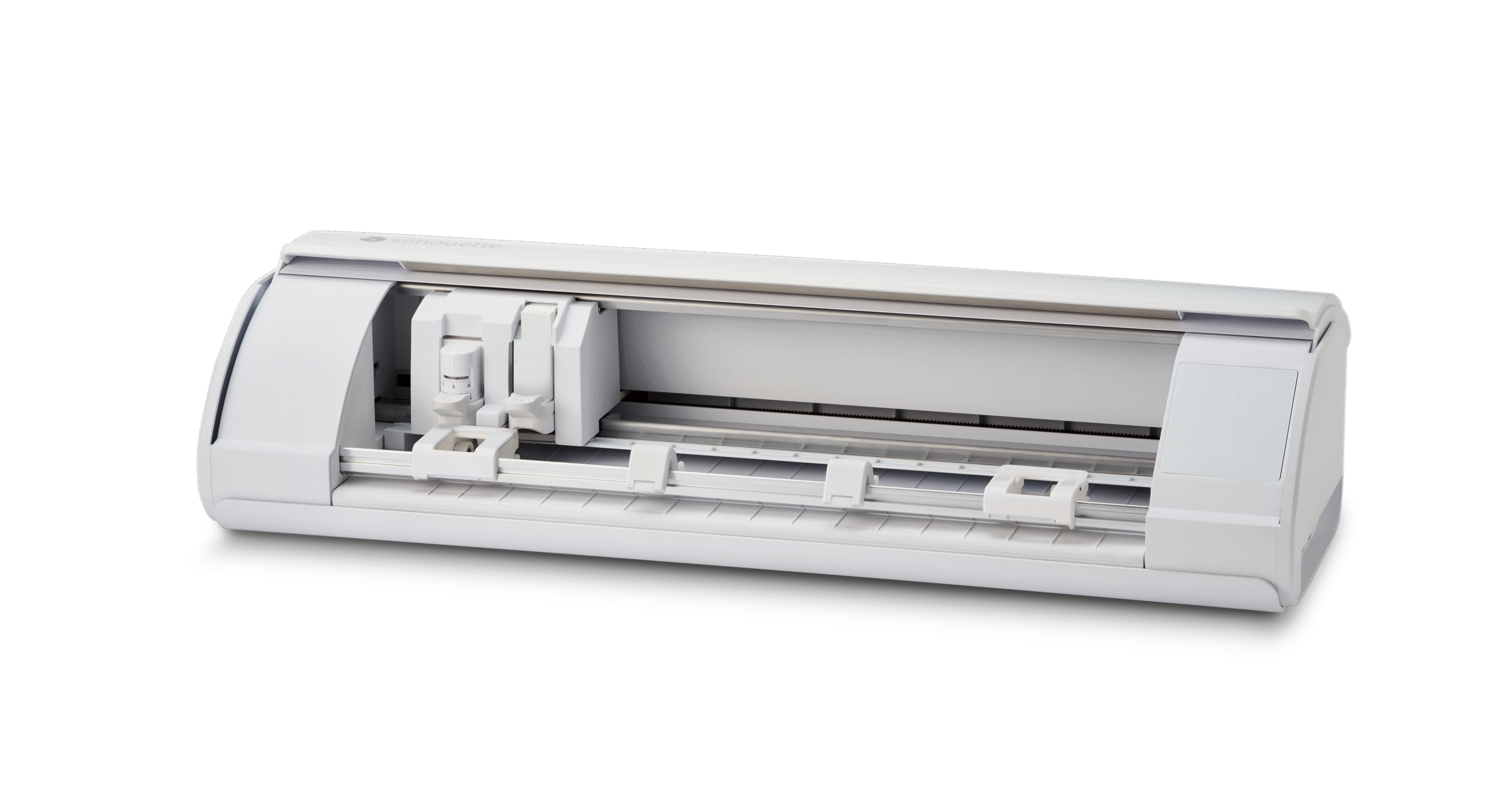

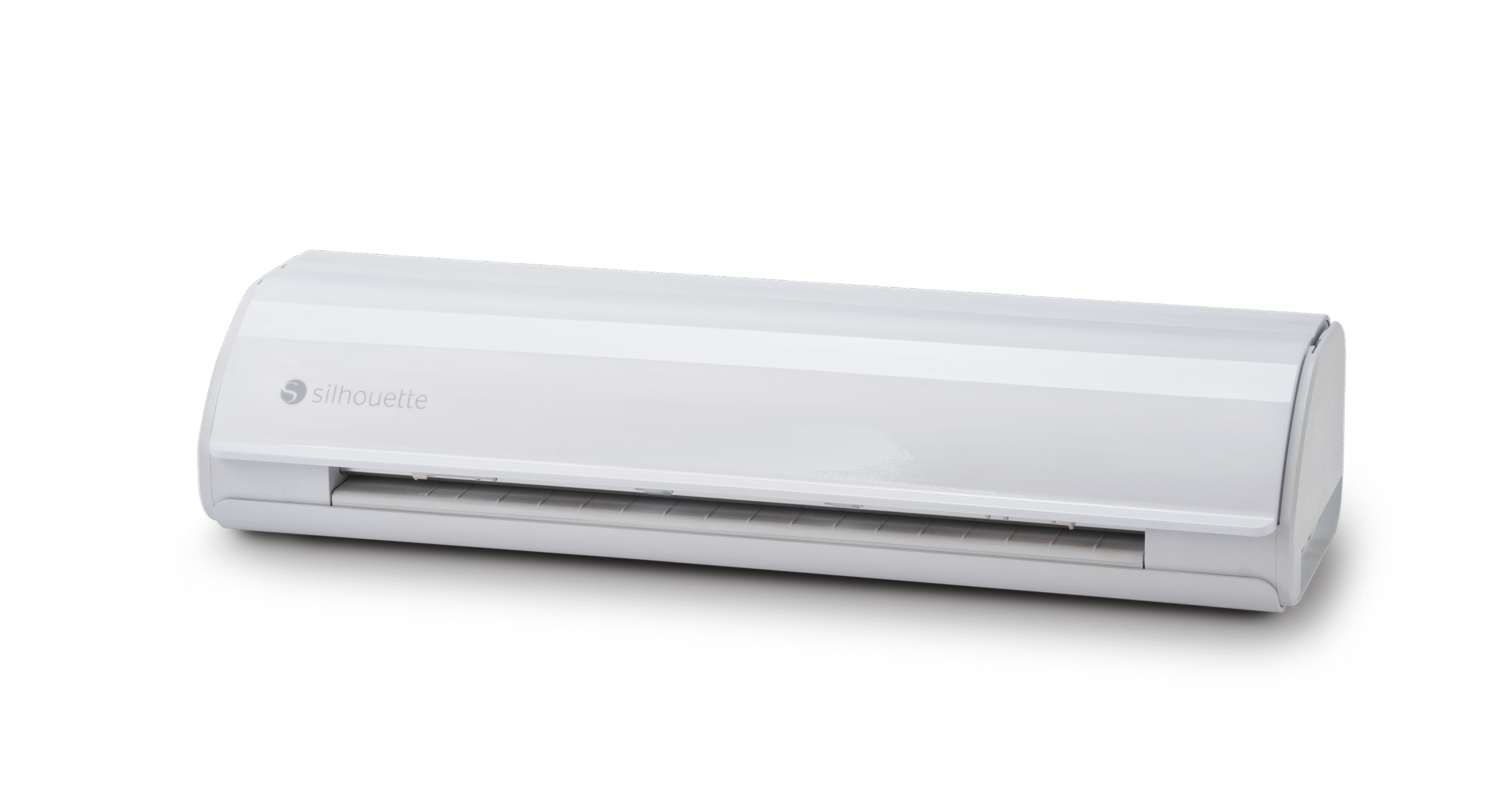

Silhouette CAMEO® 5​

849,000.00

Payment plans available from

What’s included?

  • Silhouette CAMEO® 5​​
  • AC Adapter/Power cable set

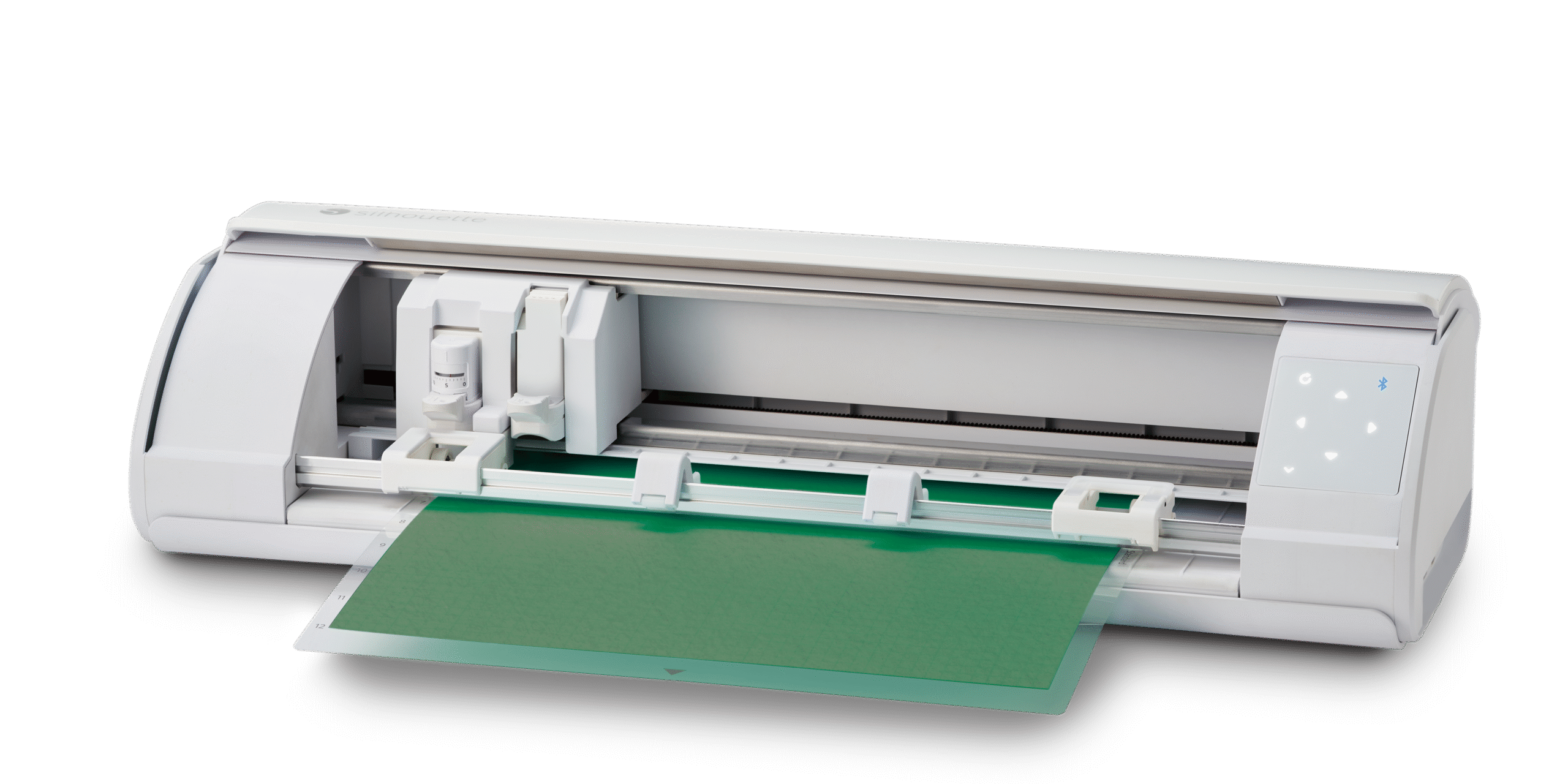

  • Cameo Cutting Mat - Standard Tack
  • AutoBlade
  • Silhouette Sketch Pens Adapter
  • Silhouette Studio® software (download)
  • 100 exclusive designs (available with registration)
  • 1-month Silhouette Design Store subscription (available with registration)
  • Free Vinyl Sample

Powerful Precision Cutting

The Silhouette Cameo 5 is a high-performance cutting machine designed for ultimate precision, power, and versatility. With enhanced stability, expanded material compatibility, and support for a wider range of tools, it’s built to handle both simple and complex projects with ease. Whether you’re a creative hobbyist or a seasoned professional, the Cameo 5 delivers a smooth, refined user experience and exceptional results—making it the perfect tool to bring your ideas to life.

Technical Specifications

Guaranteed Operating Area

12 in. x 24 in.                11.6 in. x 16 ft.

30.5 cm x 61.0 cm        29.5 cm x 487.7 cm

With a Cutting Mat      with lined material

Maximum Material Thickness                      3 mm (118.11 mils)

Maximum Cutting Length                           16 ft.(487.7 cm)

Maximum Cutting Speed                            1-10mm/s (1mm/s step), 10-300mm/s (10mm/s step)

Mechanical Resolution                                0.00625mm

Programmable Resolution                          0.05mm

Registration Mark Reading                         Yes

Number of Plunger Mountable                  2

Automatic Adjust for Blades                       Yes

Interfaces                                                    10-35 ℃ , 35-75% R.H.(non-condensing)

Rated Power Supply                                    AC Adapter DC24 V/1.25A

Power Consumption                                    25W

Working Environment                                 10-35 ℃ , 35-75% R.H.(non-condensing)

Guaranteed Operating Environment          16-32 ℃ , 35-70% R.H.(non-condensing)

Unit Dimensions (W x D x H)                      22.28 in. x 6.94 in. x 4.89 in. (56.6 cm x 17.6 cm x 12.4 cm)

Unit Weight                                                11.5 lbs (5.20 kg)

Shipping Dimensions (W x D x H)              24.80 in. x 10.80 in. x 8.26 in. (63.0 cm x 27.3 cm x 21.0 cm)

Shipping Weight                                        13.80 lbs (6.26 kg)

  • Keep it clean: Wipe the exterior regularly and clear dust or scraps from inside and rollers.
  • Protect your mats: Remove debris after each use, replace the plastic cover, and wash gently with mild soap when needed.
  • Maintain the blade: Keep free of residue, replace when cuts become rough or incomplete.
  • Store properly: Close the lid, unplug when not in use, and store in a cool, dry place away from sunlight.
  • Update software: Keep Silhouette Studio and firmware up to date for best performance.
  • Care for accessories: Cap pens tightly, store tools safely, and replace worn items promptly.
